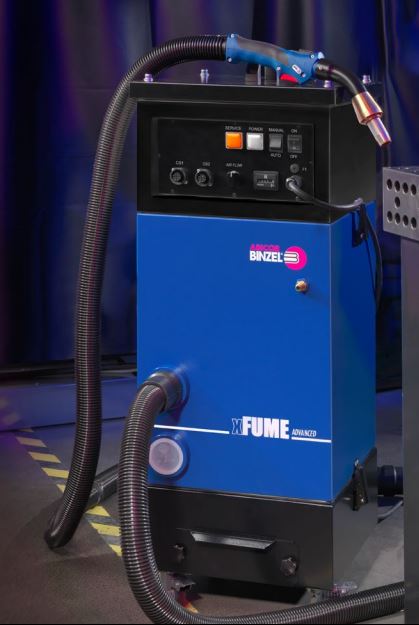

The BINZEL X FUME ADVANCED SINGLE MB501 4MT W/COOLED 240V is a compact and versatile fume extraction system designed for use with fume extraction welding torches. It is ideal for welders and industrial environments requiring effective extraction of welding fumes at the source to ensure safety and air quality.

This advanced fume extraction unit supports up to two manual welding workstations simultaneously, making it suitable for mobile use at adjacent MIG welding stations. Compatible with ABICOR BINZEL RAB GRIP and RAB GRIP HE torches, it also accommodates fume extraction torches from other manufacturers, providing flexible integration options.

Equipped with two 0.8 kW motors, the system delivers a powerful extraction capacity exceeding 16,000 PA vacuum. Each welding torch connection can be controlled independently, allowing precise fume management. The built-in automatic start-stop system reduces operating costs and minimizes wear on carbon brushes, enhancing durability.

Maintenance is streamlined with a fully automated filter cleaning process. A regular compressed air pulse clears collected fine particles into a dust collection container, which can be easily emptied during routine operation, eliminating downtime.

• Extracts fumes from up to two welding torches independently
• High-performance extraction with over 16,000 PA negative pressure
• 100% automated filter cleaning system
• Filters out up to 99.76% of dust particles larger than 0.1 microns
• Automatic start-stop reduces wear and operating costs, with optional current clamp activation
• Compact, robust design with castors for enhanced mobility
