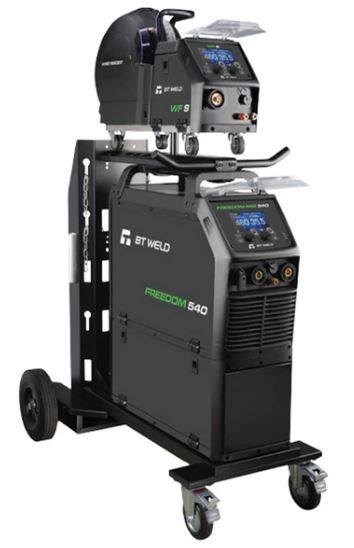

The BOSSWELD BT WELD FREEDOM 540A SWF is a compact, synergic gas-cooled inverter welder designed for professional welders requiring versatile multi-process capabilities. It supports MIG synergic/manual, MIG gas/gasless, DC TIG (Lift Arc), and Stick (MMA) welding processes, making it suitable for a wide range of industrial applications.

This welder delivers a robust 500A output with a 60% duty cycle at 500A, enabling efficient welding on materials up to 30mm thick, including mild steel, stainless steel, brass, copper, and aluminum (MIG only). The unit features a 5-inch color LCD screen for precise control and supports D200 and D300 spool sizes with a 4-roll wire drive system and a separate wire feeder for enhanced wire feeding stability.

Key specifications include a primary input power of 3-phase 415V at 50-60 Hz, welding current ranges of 30-500A for MIG, 10-500A for TIG and MMA, and wire diameter compatibility from 0.6 to 2.4mm. The welder is rated with IP21S protection and includes thermal overload protection to ensure durability and safety during extended use. Its dimensions are 114cm (L) x 58cm (W) x 142cm (H), and it weighs 90kg, backed by a 5-year warranty.

The standard package includes the FREEDOM 540 compact inverter welder, a 4-roll wire feeder, wire feeder bracket, 10m gas cooler cables, a 4m Original Binzel 501 MIG torch, 4m twist lock electrode holder, 4m earth clamp (300Amp), argon twin gauge regulator, 2m quick connect gas hose, fitted and spare drive rollers (0.9/1.2mm V groove and 1.2/1.6mm knurled groove), and 5L BT water cooler coolant liquid.
