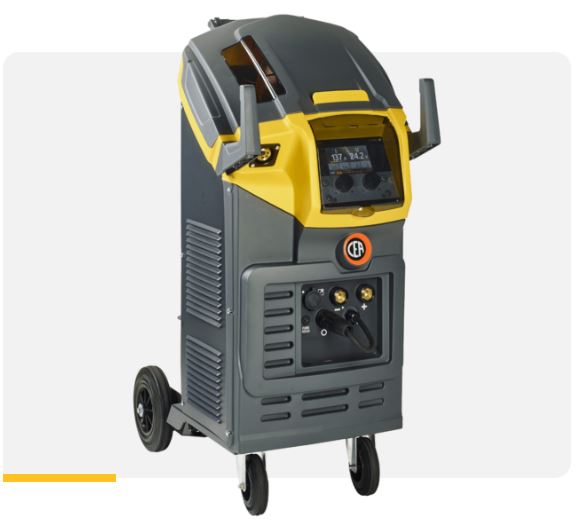

The CEA DOGMA 272 XV Gas Cooled MIG Powersource is a multi-process welding machine designed for industrial applications requiring precise and stable arc control. It is ideal for qualified welding tasks across various sectors, combining ergonomic design with advanced welding technology.

This innovative MIG welder features the DOGMA™ concept, which introduces a game-changing design in the compact MIG market. It supports multiple welding processes including MMA, TIG Lift, MIG/MAG synergic and manual modes, and for the DOGMA PULSE variant, pulsed MIG and dual pulse welding. The machine is equipped with a feeding mechanism that uses four large diameter rolls and double groove rolls that are replaceable without tools, enhancing operational efficiency.

Designed with welder comfort in mind, the DOGMA 272 XV reduces operator preparation time and simplifies tasks through its intuitive X VISION interface, which allows total control and monitoring of welding parameters. Energy-saving features include controlled operation of the cooling fan and torch water cooling only when necessary. Security is enhanced with the ability to partially or fully lock the equipment using an access key and password.

• Three-phase input voltage: 400 V ±20%/-20%, 50/60 Hz
• Input power at max current: 11.0 kVA
• Current range: 10-270 A
• Duty cycle at 40°C: 180 A at 100%, 200 A at 60%
• Wire diameter compatibility: 0.6-1.6 mm
• Coil diameter: 300 mm
• Protection class: IP 21S
• Dimensions (LxWxH): 792 x 463 x 1047 mm
• Weight: 45 to 54 kg depending on configuration
• Standards: EN 60974-1, EN 60974-5, EN 60974-10

The DOGMA 272 XV is a robust and versatile MIG welding power source that meets stringent industrial standards, offering reliable performance and ergonomic benefits for professional welders.
