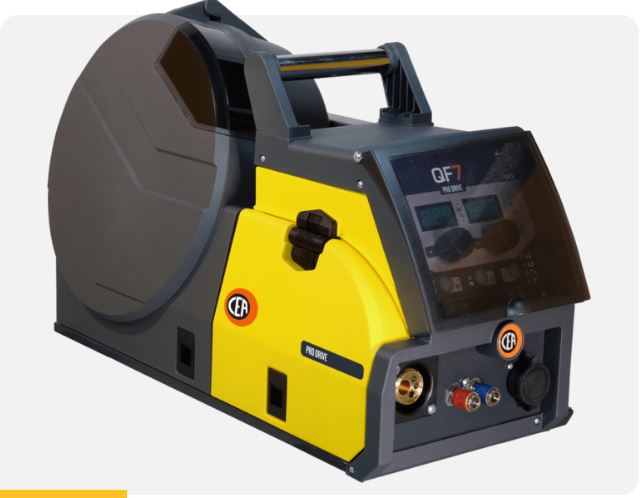

The CEA QF7 W PRO DRIVE is a professional-grade MIG wire feeder designed for precise and reliable wire feeding in welding applications. It is intended for use with QUBOX and QUBOX PULSE series power sources, making it suitable for industrial and professional welding environments.

This wire feeder features advanced digital controls with two independent displays, allowing simultaneous monitoring and adjustment of two parameters directly from the power source. The feeding mechanism includes four large-diameter rolls for consistent and accurate wire delivery, supporting solid steel wire diameters from 0.6 mm to 1.6 mm.

Additional functional features include a graduated knob to set and maintain optimal wire pressure even after arm movements, tool-free replaceable double groove rolls, and accommodation for wire spools up to 300 mm in diameter. The feeder compartment is equipped with an LED light and an inspection window in the spool cover for easy monitoring during operation. An optional HK1 Hanging Kit is also available for convenient installation.

• Single-phase 50/60 Hz input, 24 V DC motor power of 100 W
• Wire feeding speed range from 1.5 to 25 m/min
• Dimensions: 635 x 270 x 415 mm (LxWxH)
• Weight: 15 kg (maximum 20 kg)

The CEA QF7 W PRO DRIVE wire feeder is engineered for professional welding tasks requiring high precision and durability, enhancing productivity and control in MIG welding operations.
