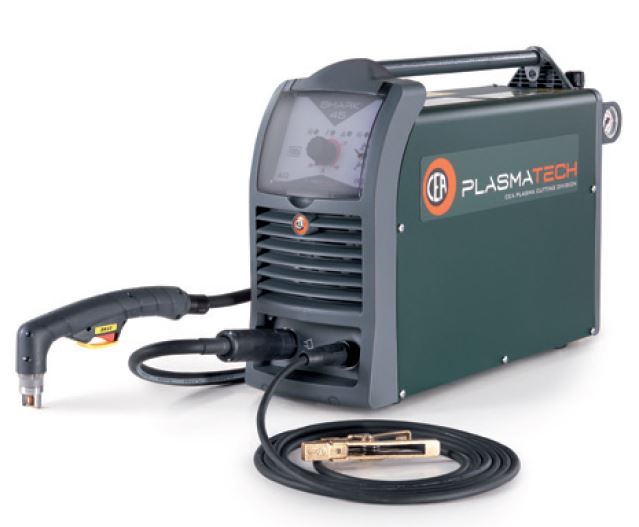

The CEA SHARK 45 PLASMA 230V SK75 is a powerful and lightweight single-phase plasma cutter designed for precise metal cutting tasks. It is ideal for applications such as car body repairs, agricultural maintenance, and general workshop use.

This plasma cutter features Power Factor Correction (PFC) technology, which optimizes power consumption and ensures a sinusoidal current wave shape. This reduces harmonic disturbances on the mains supply and allows full utilization of a 16 A fuse. The PFC circuit also provides enhanced protection against voltage fluctuations, making the machine safe to operate even with power generator sets.

Key features include the SK65 Back Striking technology torch with coaxial cable, high-power professional air flow circulation for effective cooling, and electronic controls that deliver excellent cutting quality.

• Input Voltage: 230 V, single phase, 50/60 Hz
• Maximum Input Power: 5.5 kVA
• Fuse Rating: 16 A delayed fuse
• Power Factor: 0.97 / 0.99
• Efficiency: 80%
• Current Range: 20 to 40 A
• Duty Cycle at 40°C: 100% at 20 A, 60% at 30 A, 35% at 40 A
• Recommended Cutting Capacity: 10 mm
• Maximum Cutting Capacity: 15 mm
• Severance Capacity: 18 mm
• Piercing Capacity: 8 mm
• Gas Supply: Air or Nitrogen
• Gas Pressure: 5.0 to 5.5 bar
• Gas Flow Rate: 130 to 150 L/min
• Protection Class: IP 23 S
• Dimensions: 390 x 185 x 595 mm
• Weight: 16 kg
