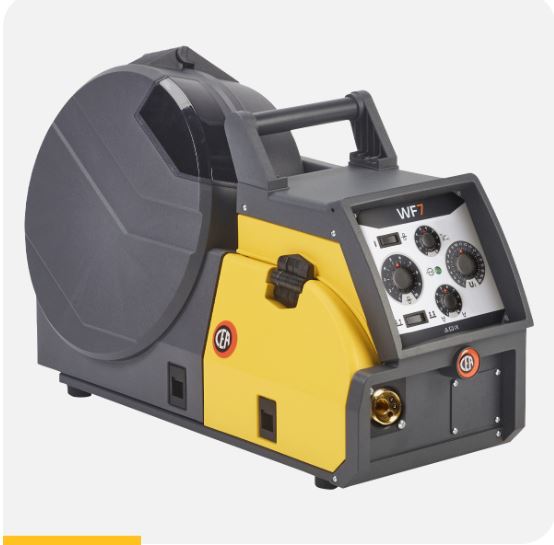

The CEA WF7 is a professional-grade MIG wire feeder designed for precise and reliable wire feeding in industrial welding applications. Compatible with MAXI i and ECHO welding systems, it supports both solid and flux-cored wires, making it versatile for various welding tasks.

Constructed with a robust metallic frame and shock-proof plastic front panels, the WF7 protects all connections and adjustment controls, ensuring durability and long-term performance. Its four-roll feeding mechanism provides consistent wire drive, suitable for wire diameters ranging from 0.6 mm to 2.4 mm, and supports wire spools up to 300 mm in diameter and 20 kg in weight.

Key features include electronic voltage and wire speed adjustments, dual-wire rolls allowing two wire types on one drive roll replaceable without tools, and a graduated knob for precise wire pressure control that remains stable after arm movements. Additional controls such as external burn-back and motor ramp adjustments enable accurate arc striking, while the 2/4 stroke selector switch, gas purge, and wire inch switches enhance operational flexibility.

The WF7 also offers excellent stability with a sloping lodging for wire spools, a robust handle, and a lifting eyebolt for easy transport. An inspection window in the spool cover allows quick monitoring of wire supply.

• Single phase input: 48 V, 50/60 Hz
• Motor power: 100 W
• Four rolls feeding mechanism
• Feeding speed range: 0.5 to 20 m/min
• Supports solid steel wire diameters from 0.6 mm to 2.4 mm
• Compatible with wire spools up to 300 mm diameter and 20 kg weight
• Dimensions (LxWxH): 570 x 275 x 400 mm
• Weight: 17 kg
