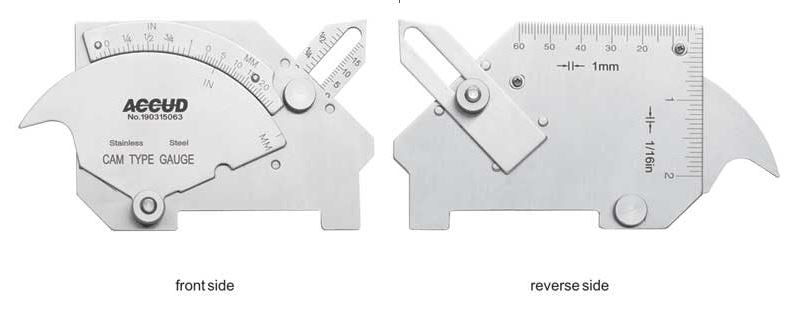

The GAMER ACCUD AWS Fillet Weld Gauge is a precision measuring tool designed for welders and inspectors to accurately assess fillet weld quality and dimensions. It is essential for ensuring compliance with welding standards and maintaining structural integrity.

This gauge measures the angle of preparation from 0 to 60 degrees, allowing users to verify weld bevel angles accurately. It also evaluates excess weld metal, depth of undercut and pitting with a resolution of 1/32 inch, and measures fillet weld throat size to 1/64 inch. Additionally, it assesses fillet weld length and detects misalignments such as high or low weld conditions, providing comprehensive weld inspection capabilities.

• Measures angle of preparation: 0-60°
• Detects excess weld metal
• Measures depth of undercut and pitting: 1/32 inch increments
• Fillet weld throat size measurement: 1/64 inch increments
• Assesses fillet weld length and misalignments (high-low)

This tool is ideal for quality control in welding fabrication, ensuring welds meet AWS and other industry standards.
