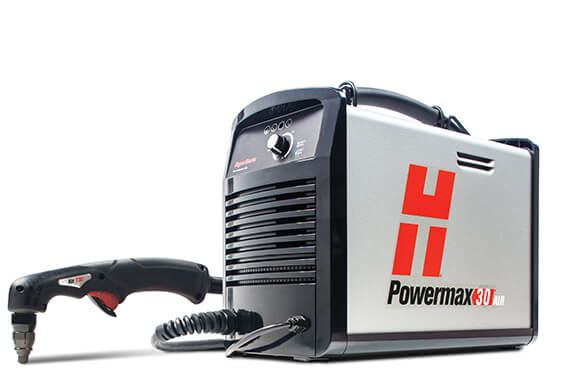

The Hypertherm Powermax30 AIR CE Hand System with a 4.5 meter torch is a compact, lightweight handheld plasma cutting machine designed for professionals requiring portability and versatility. It integrates a built-in air compressor, enabling operation without external air supply, suitable for various single-phase power environments.

This plasma cutter delivers precise metal cutting with recommended thickness capabilities of 8mm at 20 inches per minute, 10mm at 10 inches per minute, and up to 16mm at 5 inches per minute. Its continuous pilot arc feature allows cutting through metal grates and rusted surfaces without retriggering, enhancing efficiency in demanding conditions.

Key technical specifications include an input voltage range of 120 to 240V single-phase at 50/60Hz, output current adjustable between 15 and 30 amps, and a rated output voltage of 83 VDC. The system supports a duty cycle of 35% at 240V and 20% at 120V at 40°C ambient temperature. The unit weighs 13.5 kg and measures 419 x 196 x 333 mm (DxWxH) with handles.

The Powermax30 AIR features Hypertherm Certified reliability, ensuring consistent performance in challenging environments. The included AIR T30 hand torch with a 4.5 meter lead is ruggedly constructed for durability. The system package comprises the power supply, AIR T30 torch, work clamp with 4.5 meter lead, 240V/20A plug with adapters for 120V/15A and 240V/20A circuits (CSA model), operator and safety manuals, one nozzle, one electrode, and a carrying strap.
