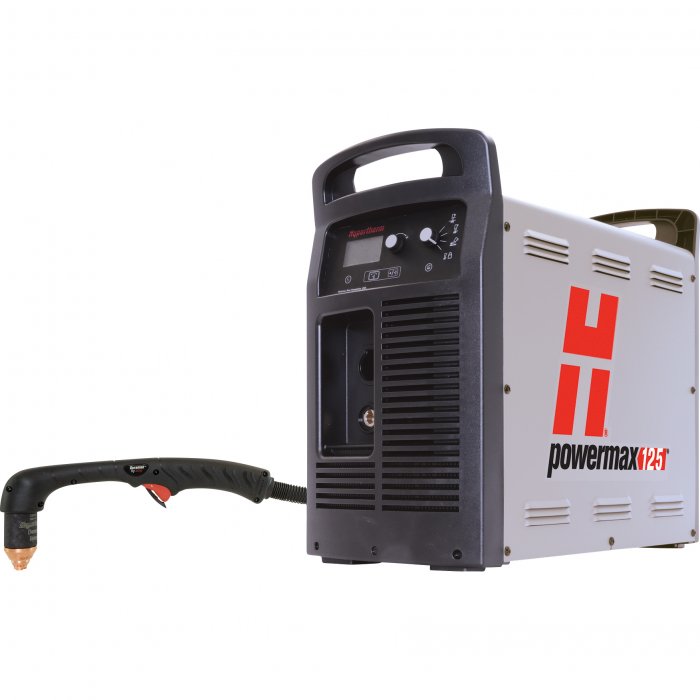

The Hypertherm PMX125 CE Hand System with CPC Port and 15.2m Lead is a robust plasma cutting machine designed for industrial applications requiring fast, heavy-duty cutting and gouging. It is suitable for both hand-held and machine-held use, making it versatile for various fabrication and manufacturing environments.

This plasma cutter features patented drag-cutting technology for operator-friendly use and Smart Sense technology that maintains accurate air pressure for optimal cutting performance. The Spring Start technology ensures consistent arc starting and reliable torch operation. The system includes a 7.6m torch and supports an extensive range of specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking tasks.

Cutting and Gouging Capacities:

• Cutting thickness up to 38mm (1-1/2") at 457mm/min (18 ipm)
• Cutting thickness up to 44mm (1-3/4") at 250mm/min (10 ipm)
• Severance thickness up to 57mm (2-1/4") at 125mm/min (5 ipm)
• Piercing capability up to 25mm (1")
• Gouging rate of 12.5kg per hour (27.6lbs)

Technical Specifications:

• Input Voltage: 400V 3-Phase
• Output Current Range: 30-125A
• Duty Cycle: 100% at 125A
• Weight: 49kg
• Dimensions: 592mm Depth x 274mm Width x 508mm Height
• Recommended Gas: Clean, dry, oil-free air or nitrogen
• Gas Flow and Pressure: Cutting at 260 L/min @ 5.9 bar (85 psi), Gouging at 212 L/min @ 4.1 bar (60 psi)
• Engine Drive Requirement: 40kW (125A output)

The power supply includes a CPC port and voltage divider, enhancing compatibility with Duramax torches designed for the Powermax 125 plasma system, including Mini machine, Robotic, Machine, Hyamp Long and Hand torches. This system is engineered for high-impact and heat-resistant performance, ensuring durability in demanding industrial cutting and gouging operations.
