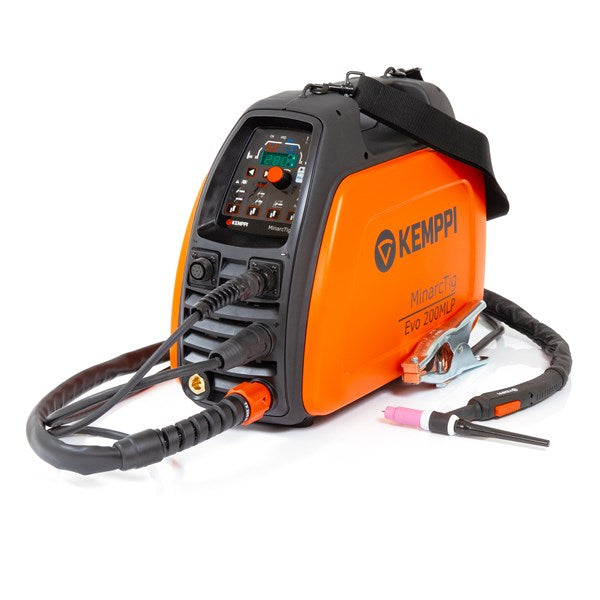

The Kemppi MinarcTIG EVO 200 MLP is a versatile DC TIG welding machine designed for professional welders engaged in light industrial manufacturing, installation, repair, and maintenance. It combines portability with advanced features to deliver precise and efficient welding performance.

This compact and lightweight welder offers accurate HF ignition starting from 5 A, smooth arc control, and a 200 A DC output at 35% duty cycle on a single-phase 230 V supply. Its powerful PFC power source ensures excellent energy efficiency with a power factor of 0.99, enabling reliable operation even on long power supply cables exceeding 100 meters. The machine supports both TIG and MMA welding processes, providing flexibility for various electrode types and applications.

The MinarcTIG EVO 200 MLP includes large LED metering displays and advanced functions such as pre- and post-gas timing, slope in/out control, torch switch latching, and remote current control options. The semi-automatic pulsed DC TIG welding function enhances productivity by increasing welding speed up to 10%, depending on the application. Additional features include Minilog control and a dual-process capability for quality MMA welding.

Machine Package Includes:

• MinarcTIG EVO 200AU power source
• 8m TIG torch
• 5m 25mm² earth cable

Key Features:

• 200 A DC output at 35% duty cycle, 1-phase, 230 V
• Refined arc ignition from 5 A
• Pre and post gas timers
• Slope in/out timers
• Torch switch latching
• MLP and pulse welding options
• Remote current control capability
• PFC technology for energy efficiency
• Compatible with mains network or generator use
• Kemppi 2+ warranty for parts and labour

Specifications:

• Connection voltage: 1~ 50/60 Hz, 240 V ±15%
• Fuse (delayed): 16 A
• Minimum generator power: 5.6 kVA
• TIG output at 35% ED: 200 A / 18.0 V
• TIG output at 60% ED: 160 A / 16.4 V
• TIG output at 100% ED: 140 A / 15.6 V
• MMA output at 35% ED: 170 A / 26.8 V
• MMA output at 60% ED: 130 A / 25.2 V
• MMA output at 100% ED: 110 A / 24.4 V
• Open circuit voltage: 95 V
• Stick electrode sizes: 1.5 – 4.0 mm
• Welding range (MMA): 10 A / 20.4 V to 170 A / 26.8 V
• Welding range (TIG): 5 A / 10.2 V to 200 A / 18.0 V
• Operating temperature range: -20°C to +40°C
• Dimensions (LxWxH): 449 × 210 × 358 mm
• Weight (without accessories): 11 kg
• Degree of protection: IP23
• Standards: IEC 60974-1, IEC 60974-3, IEC 60974-10, IEC 61000-3-12
