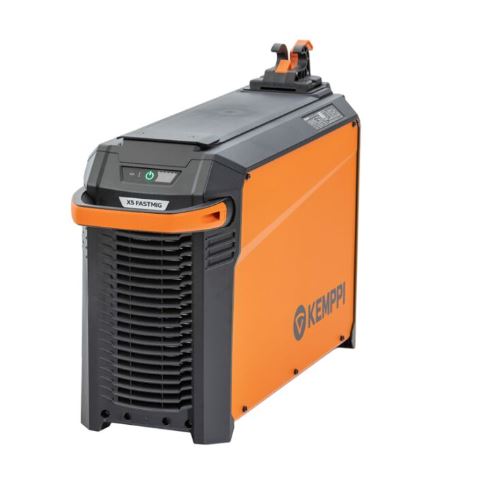

The KEMPPI X5 Power Source 500 Pulse WP is a versatile multi-process welding power source designed for professional welders requiring high performance and flexibility. It delivers up to 500 A at a 60% duty cycle, supporting a wide range of welding applications including MIG, TIG, and MMA.

This power source offers manual, synergic, pulse, and double pulse welding modes, enhancing control and weld quality. It includes advanced features such as WiseSteel and WiseFusion technologies, along with the X5 Work Pack Pulse containing 54 welding programs. The unit is compatible with all MAX welding processes and the WisePenetration welding process, making it suitable for diverse industrial welding tasks.

Technical specifications:

• Product code: X5130500010
• Connection voltage: 3-phase, 380–460 V ±10%, 50/60 Hz
• Fuse rating: 32 A
• Output current: 500 A at 60% duty cycle, 400 A at 100% duty cycle
• Rated power at max current: 27 kVA
• Recommended minimum generator power: 35 kVA
• Welding current and voltage ranges: MIG 15 A/10 V to 500 A/50 V; TIG 15 A/1 V to 500 A/50 V; MMA 15 A/10 V to 500 A/50 V
• Dimensions (LxWxH): 750 x 263 x 456 mm
• Weight (without accessories): 39.5 kg
• Degree of protection: P23S
• EMC class: A
• Operating temperature range: -20 to +40 °C
• Storage temperature range: -40 to +60 °C

This power source is engineered for demanding welding environments, providing reliable performance and compatibility with a broad spectrum of welding processes. Its robust design and advanced control features make it ideal for industrial fabrication, maintenance, and repair operations.
