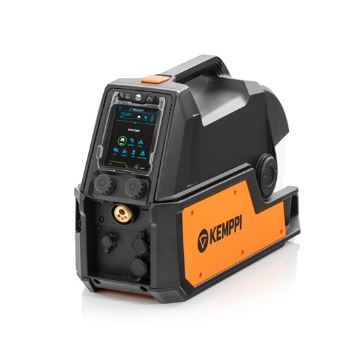

The KEMPPI X5 Wire Feeder 300 APC is a top-loading wire feeder designed for professional welders requiring precise and versatile wire feeding solutions. It supports synergic and pulse MIG/MAG, TIG, stick (MMA), and gouging welding processes, making it suitable for a wide range of industrial welding applications.

This wire feeder features a graphical 5.7" TFT display panel for intuitive operation and automatic parameter adjustment through Weld Assist, enhancing welding efficiency and accuracy. The 4-wheel wire feed mechanism includes integrated lighting and a kinetic spool brake, with a rotameter provided as standard for optimal wire feed control.

Connectivity options include embedded WLAN support compatible with digital WPS and WeldEye ArcVision modules, as well as a USB port for data transfer and device updates. The X5 Wire Feeder enables the use of advanced MAX welding processes, Wise special processes, SuperSnake GTX sub feeder, and HR45 remote control, expanding its functionality for complex welding tasks.

• Product code: X5250300000
• Wire feed mechanism: 4-roll, single-motor
• Gun connection: Euro
• Compatible filler wires: Fe 0.8–2.0 mm, Ss 0.8–2.0 mm, Mc/Fc 0.8–2.4 mm, Al 0.8–2.4 mm
• Wire feed speed range: 0.5–25 m/min
• Diameter of feed rolls: 32 mm
• Operating temperature range: -20°C to +40°C
• Storage temperature range: -40°C to +60°C
• External dimensions (LxWxH): 650 x 230 x 410 mm
• Weight (without accessories): 10.9 kg
• Degree of protection: IP23S
• Maximum wire spool weight: 20 kg
• Maximum wire spool diameter: 300 mm
• EMC class: A
• Maximum shielding gas pressure: 0.5 MPa
• Welding current at 60% duty cycle: 500 A
• Welding current at 100% duty cycle: 430 A
