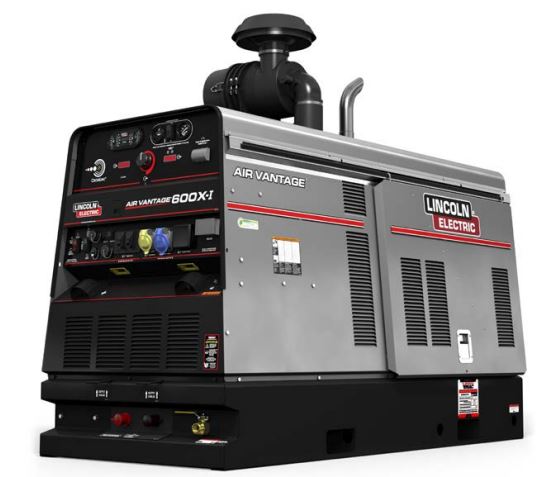

The Lincoln Air Vantage 600X is a diesel engine-driven multi-process welding power source designed for heavy-duty industrial applications. It is ideal for professionals in heavy fabrication, mining, construction, and mobile service or maintenance sectors requiring robust and versatile welding equipment.

This welding machine features a brush-type alternating current generator that supports DC multi-purpose welding and provides 240 VAC single-phase auxiliary standby power. It incorporates advanced Chopper Technology for precise welding control and integrates a belt-driven 60 CFM rotary screw compressor, enhancing operational efficiency.

Equipped with CrossLinc® Technology, the Air Vantage 600X enables weld cable communication for voltage control at the arc without the need for a separate control cable. Additional safety and operational features include a Voltage Reduction Device (VRD), engine stop, battery isolator, and an emergency stop, making it compliant with mine specifications by including a roll cage and spill tray.

Key specifications include an output range of 30-600 amps, rated output of 575A/43V at 100% duty cycle and 600A/40V at 60% duty cycle, and auxiliary power of 7.2kW with two 240V outputs. The unit is powered by a Deutz TD2.9L4 Turbo 4-cylinder diesel engine and supports welding processes such as Stick, TIG, MIG, Flux-Cored, and Gouging. It delivers an air supply of 60 CFM at 100 psi, with average and peak horsepower ratings of 60V and 66V at 1800 RPM respectively. The machine dimensions are 1067 mm high, 836 mm wide, and 1753 mm deep, weighing 787 kg.

• Heavy-duty diesel engine-driven welding power source
• Supports multiple welding processes: Stick, TIG, MIG, Flux-Cored, Gouging
• Integrated 60 CFM rotary screw compressor
• Advanced Chopper Technology and CrossLinc® communication
• Safety features: VRD, engine stop, battery isolator, emergency stop
• Mine spec compliant with roll cage and spill tray
• Auxiliary power: 7.2kW, 2 x 240V outputs
• Dimensions: 1067H x 836W x 1753D mm; Weight: 787 kg

Manufactured by Lincoln Electric, this unit is supplied as a single pack (EA) and is engineered to meet the demands of rigorous industrial welding environments.
