The Speedglas G5-03TW Adflo Helmet Upgrade Kit is designed for existing Adflo PAPR users seeking to upgrade their welding helmet. This kit includes the advanced G5-03TW respiratory welding helmet and lens, compatible with the current Adflo powered air-purifying respirator system, offering a cost-effective helmet enhancement solution.

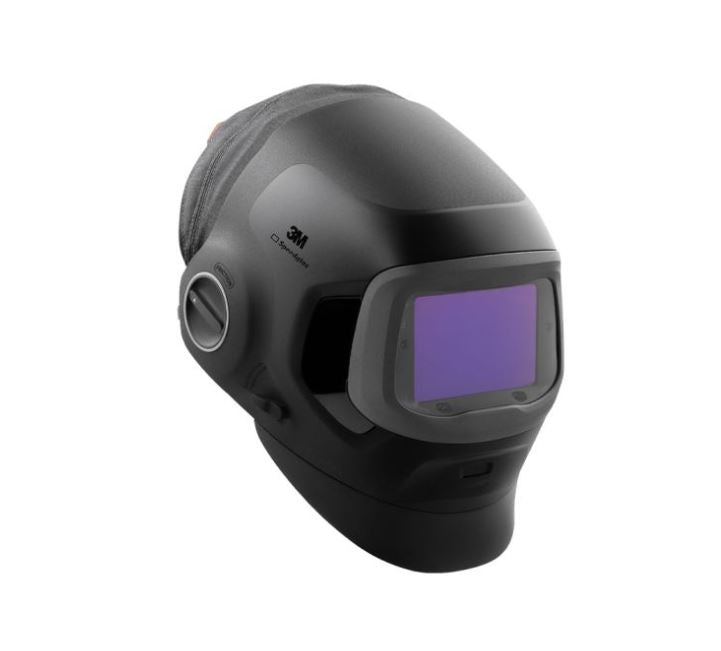

Engineered for professional welders, the G5-03TW helmet features an extra-large viewing area of 109mm by 73mm, providing enhanced visibility. It incorporates TAP Technology for smooth transitions between grind, cut, and weld modes, and True-View optics that improve color accuracy and contrast. The helmet also offers climate control for adjustable airflow, ensuring comfort during extended use.

Additional features include Bluetooth connectivity for memory mode customization via a mobile app, shades ranging from 5 and 8-13 with a light shade of 2.5 compliant with AS/NZS1338.1 standards, and advanced TIG Sensor Technology (TST) capable of detecting welding currents as low as 1 amp. The helmet is manufactured in Sweden and includes auto-on and auto-off functions for convenience and safety. Optional accessories such as task lights and extra coverage options are available to enhance functionality.

Specifications:

• Compatible with MMAW (Electrode), MIG/MAG, TIG (>20A and 1A-20A), plasma welding and cutting, hidden arc, tack welding, and grinding applications
• Viewing area: 109mm x 73mm
• 3M™ Speedglas™ TrueView Technology enabled
• TAP function for mode switching
• Bluetooth enabled with memory mode via mobile device app
• Battery life between 1500 and 2500 hours
• ISO Classification: V2
• Dark state shade range: 8 to 13
• Cut mode shade: 5
• Light state shade: 2.5
• Permanent UV/IR protection at shade 13
• Auto ON/OFF with 0.1 ms switching time (light to dark at +23°C)
• Delay time (dark to light): 50 to 1300 ms
• Four arc detection sensors

Warranty:

• 3 years warranty provided by Speedglas

Note: This upgrade kit includes only the helmet and lens and does not include the Adflo PAPR system.
