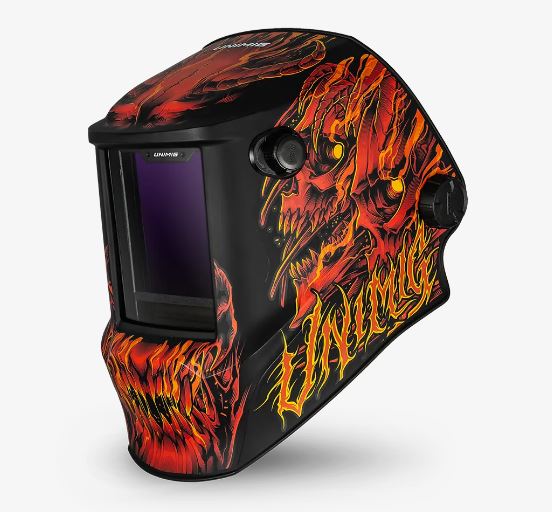

The UNIMIG PRO SERIES DRAGON is a professional-grade auto-darkening welding helmet designed for welders requiring superior eye protection and optical clarity. It is suitable for various welding applications, including TIG, MIG, and stick welding, providing reliable safety and comfort during extended use.

This welding helmet features a 1/1/1/1 optical classification, ensuring crystal-clear visibility of the weld at all angles. The large 102.5 x 102.5mm viewing area enhances visibility, allowing precise monitoring of the welding process. The auto shade select technology automatically detects the arc and adjusts the shade level between 5 and 13, protecting the eyes from harmful light without manual intervention.

Additional features include a fast switching time from light to dark (0.04ms) and dark to light (0.1 - 0.9s), adjustable sensitivity and delay settings, and a 3.0 light state for clear vision before, during, and after welding. The helmet is equipped with five arc sensors (four arc sensors plus one arc intensity sensor) to detect welding arcs instantly, even when working out of position.

The external grind button allows seamless switching to grind mode, indicated by an LED light, without removing the helmet. The 4-point harness system provides a comfortable and secure fit, distributing weight evenly to reduce neck strain during prolonged use. Powered by solar cells and two replaceable CR2450 backup batteries, the helmet ensures reliable performance in various working conditions.

• Filter dimensions: 114 x 133 x 9.5mm
• View size: 102.5 x 102.5mm
• Classification: 1/1/1/1 optical clarity
• Light state: 3.0
• Dark state range: 5 - 13
• UV/IR protection: DIN15
• Adjustable sensitivity and delay
• Operating temperature: -10°C to 65°C
• Storage temperature: -20°C to 85°C
• Minimum TIG amperage: 2A
• Standards: AS/NZS 1337.1 B (High Impact), AS/NZS 1338.1 (Auto-Darkening)
• 3-year warranty covered by UNIMIG

The UNIMIG PRO SERIES DRAGON welding helmet is engineered to meet stringent safety standards while delivering optimal visibility and comfort, making it an essential protective tool for professional welders.
