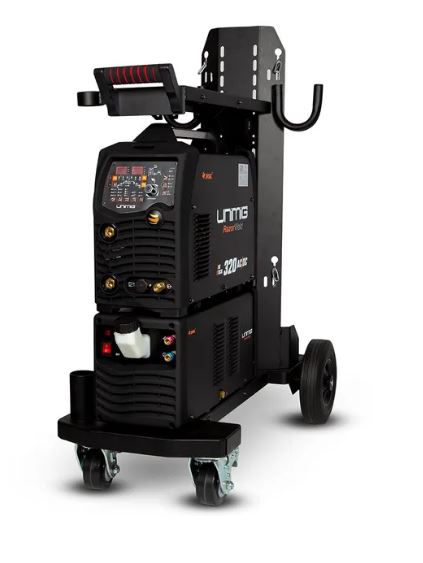

The UNIMIG RAZOR 320 AC/DC TIG Water Cooled Bundle is a professional-grade welding machine designed for skilled welders requiring precise TIG and Stick welding capabilities. Ideal for industrial and fabrication applications, this bundle includes a high-performance TIG welder, a water cooler, and a welding trolley to enhance workflow efficiency.

This TIG welder operates on a 415V three-phase input with a rated output range of 5-315A, supporting AC/DC HF TIG and AC/DC Pulse functions. It is suitable for welding a variety of materials including mild steel, stainless steel, cast iron, silicon bronze, and aluminium. The machine features a 30% duty cycle at 315A, making it capable of handling demanding welding tasks with consistent performance.

Stick welding capabilities include a current range of 10-270A, supporting electrode sizes from 2.5 to 4.0mm, with a 30% duty cycle at 270A. The unit incorporates advanced features such as VRD (Voltage Reduction Device) for safety, crater current control for improved weld quality, and thermal overload protection to prevent overheating.

The included RAZOR™ 320 AC/DC Water Cooler enhances TIG welding performance by efficiently removing excessive heat through Bi-Flow™ Technology when paired with the T3W Water-Cooled TIG Torch. This cooling system allows for extended welding at high amperages without compromising torch performance.

• Primary Input Voltage: 415V Three Phase
• Rated Input Power: 9.0 kVA
• Rated Output: 5-315A (TIG), 10-270A (Stick)
• Protection Class: IP21S
• Insulation Class: F
• Suitable Materials: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
• Dimensions: 566 x 223.5 x 405 mm
• Weight: 25.5 kg
• Warranty: 3 Years

The package also includes a welding trolley (Product No: JRTIG320TROLLEY) with dimensions 500 x 200 x 234 mm and weighing 14.8 kg, providing mobility and convenience on the workshop floor. The trolley operates on a 240V single-phase supply and meets IEC60974-2 standards.
